变极多速三相异步电动机是三相异步电动机的主要派生系列之一。该电机可随负载状态有级地改变转速，达到功率的合理匹配和简化变速系统。它广泛应用在机床、矿山、冶金、纺织、印染、化工、农机等部门。 YD系列电动机的功率等级与安装尺寸的对应关系与国外同类型先进的产品相当，便于单机或机床配套出口，也可作为引进设备中同类电机的备品电动机。
●机座号与速比、功率对照表
|
机座号
Frame No.
|
同步转递Synchronous Speed r/min
|
|
1500/3000
|
1000/1500
|
750/1500
|
750/1000
|
500/1000
|
1000/1500
/3000
|
750/1500
/3000
|
750/1000
/1500
|
500/750
/1000/1500
|
|
功率 Power kw
|
|
YD80
|
1
|
0.45/0.55
|
——
|
|
2
|
0.55/0.75
|
|
YD90S
|
0.85/1.1
|
0.65/0.85
|
——
|
0.35/0.45
|
——
|
|
YD90L
|
1.3/1.8
|
0.85/1.1
|
0.45/0.75
|
0.45/0.65
|
|
YD100L
|
1
|
2/2.4
|
1.3/1.8
|
0.85/1.5
|
0.75/1.1
|
|
0.75/1.3/1.8
|
|
|
2
|
2.4/3
|
1.5/2.2
|
|
YD112M
|
3.3/4
|
2.2/2.8
|
1.5/2.4
|
1.3/1.8
|
1.1/2/2.4
|
0.65/2/2.4
|
0.85/1/1.5
|
——
|
|
YD132S
|
4.5/5.5
|
3/4
|
2.2/3.3
|
1.8/2.4
|
1.8/2.6/3
|
1/2.6/3
|
1.1/1.5/1.8
|
|
YD132M
|
1
|
6.5/8
|
4/5.5
|
3/4.5
|
2.6/3.7
|
2.2/3.3/4
|
1.3/3.7/4.5
|
1.5/2/2.2
|
|
2
|
2.6/4/5
|
1.8/2.6/3
|
|
YD160M
|
9/11
|
6.5/8
|
5/7.5
|
4.5/6
|
2.6/5
|
3.7/5/6
|
2.2/5/6
|
3.3/4/5.5
|
|
YD160L
|
11/14
|
9/11
|
7/11
|
6/8
|
3.7/7
|
4.5/7/9
|
2.8/7/9
|
4.5/6/7.5
|
|
YD180M
|
15/18.5
|
11/14
|
——
|
7.5/10
|
——
|
——
|
|
YD180L
|
18.5/22
|
13/16
|
11/17
|
9/12
|
5.5/10
|
——
|
——
|
7/9/12
|
3.3/5
/6.5/9
|
|
YD200L
|
1
|
26/30
|
18.5/2.2
|
14/22
|
12/17
|
7.5/13
|
10/13/17
|
4.5/7
/8/11
|
|
2
|
17/26
|
15/20
|
9/15
|
5.5/8
/10/13
|
|
YD225S
|
32/37
|
22/28
|
——
|
——
|
——
|
14/18.5/24
|
——
|
|
YD225M
|
37/45
|
26/32
|
24/34
|
——
|
12/20
|
17/22/28
|
7/11
/13/20
|
|
YD250M
|
45/52
|
32/42
|
30/42
|
——
|
15/24
|
24/26/34
|
9/14
/16/26
|
|
YD280S
|
60/72
|
42/55
|
40/55
|
——
|
20/30
|
30/34/42
|
11/18.5
/20/34
|
|
YD280M
|
72/82
|
55/67
|
47/67
|
——
|
24/37
|
34/37/50
|
13/22
/24/40
|

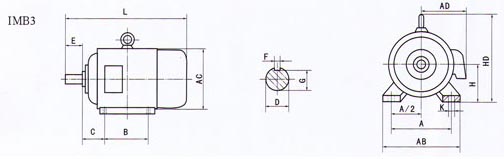

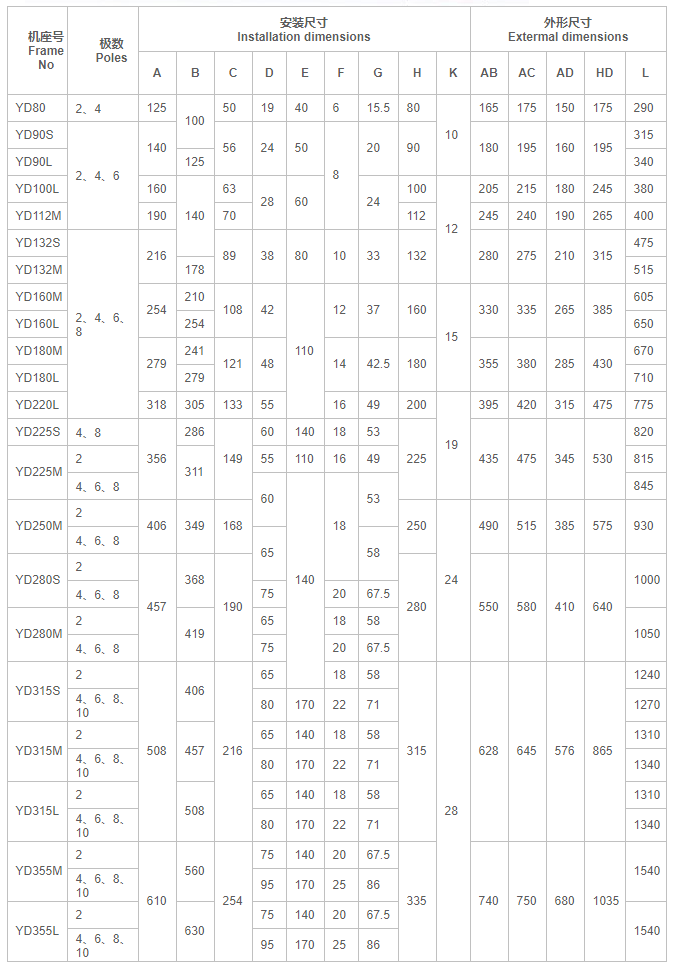

●外型与安装尺寸
|
